Hacking the Atomberg Lock: From App Annoyance to Local Freedom

The Annoyance That Started It All

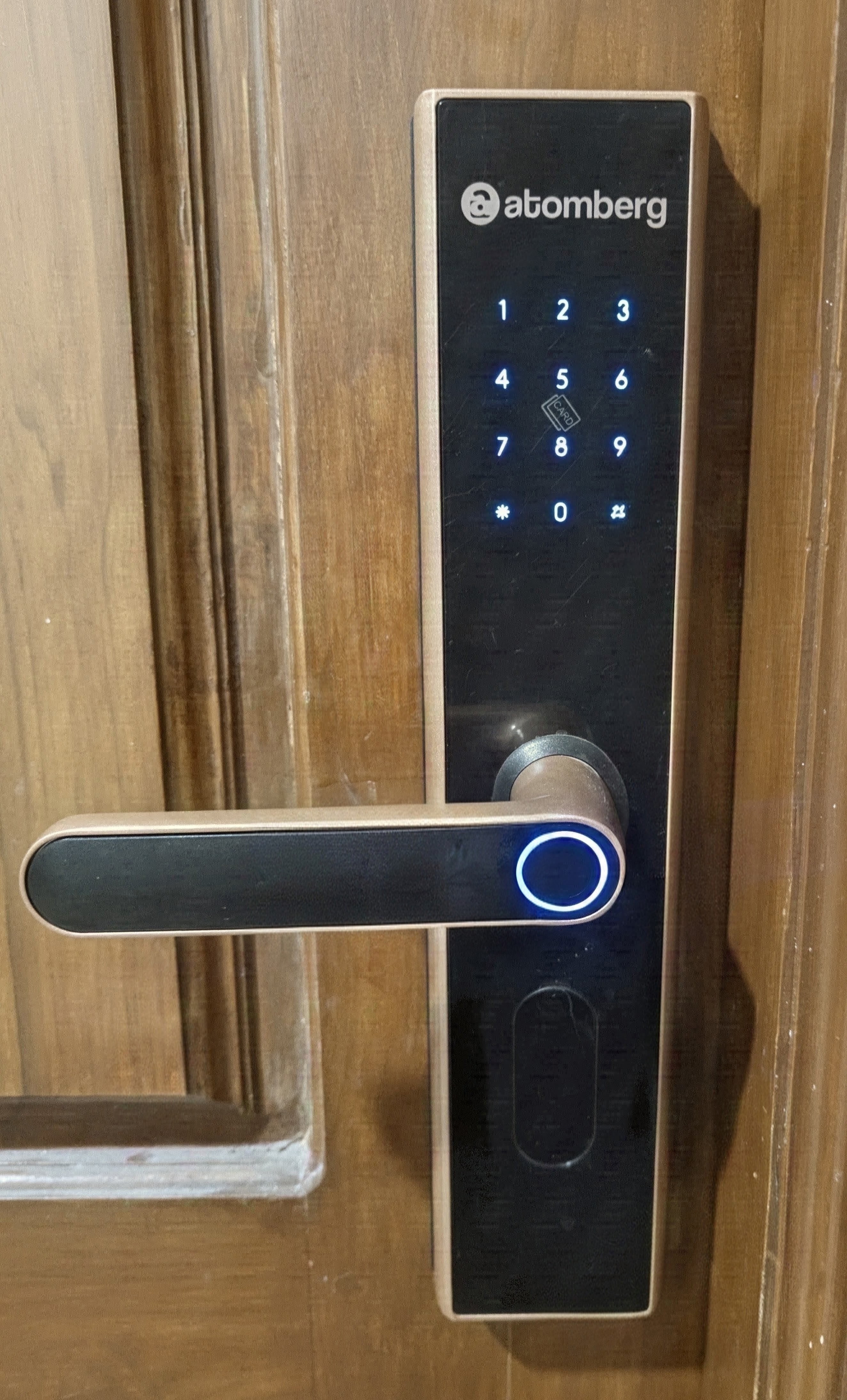

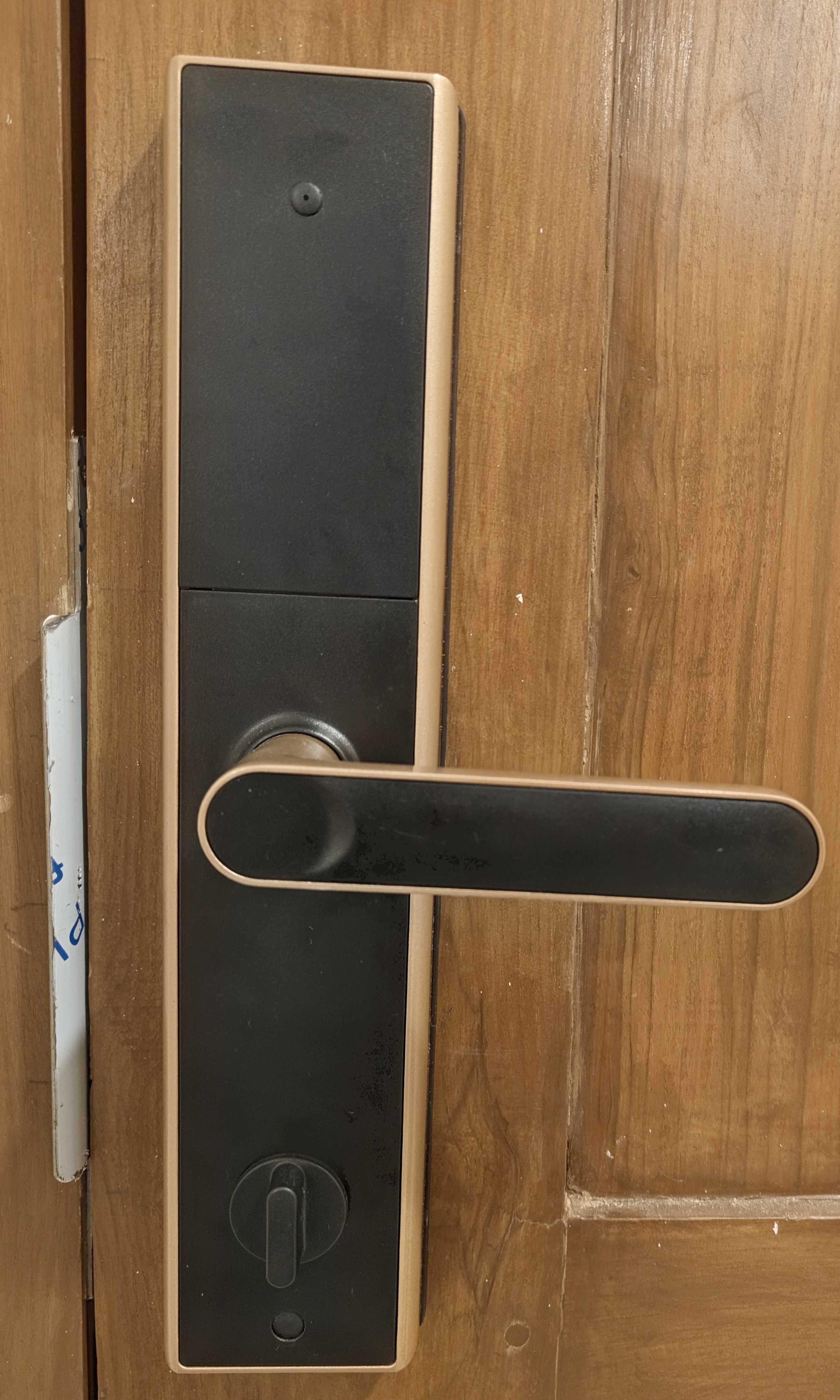

I bought the Atomberg SL1 Pro smart door lock expecting a modern, hassle-free way to secure my front door. As a piece of physical hardware, it is actually impressive, and it gives you a bunch of ways to get inside: mobile app, fingerprint sensor, keypad, NFC cards and physical keys.

The software side was a completely different story.

The moment I paired the lock with their official mobile app, the friction started immediately. Every single time I wanted to inspect battery levels, adjust user access, or check audit logs, the app insisted on having phone location toggled on. If location was off, it outright refused to discover or talk to the lock over Bluetooth.

Beyond the annoyance of permission prompts, the fundamental flaw was isolation. The lock was trapped in its own walled garden, completely severed from the central brain of my home: Home Assistant.

Peeling Back the Layers

Figuring out how this lock actually communicates was an entertaining journey full of cryptographic puzzles, timing quirks, and Android tinkering. Here is how the story unfolded.

Step 1: The App Teardown & The Secret Bootstrap Key

The obvious first stop was deobfuscating and decompiling the official Android APK to see how pairing worked.

Buried in the crypto helper classes was a hardcoded 16-byte key:

mQ3cJOATdERLW1a5

It turned out this key is universal across every lock they make. It acts like a factory bootstrap password. When you pair a fresh lock with your phone for the very first time, the mobile app wraps its greeting message using this hardcoded key. The lock decrypts it, generates its own unique credentials, and hands them back to the phone.

Step 2: Spying on Memory with Frida

Static code only tells you half the story; I wanted to see the actual conversations happening in real time. I fired up Frida on my rooted phone to hook right into Android native crypto methods while tapping around in the app.

Watching the buffers fly past live in my terminal answered the cryptographic mystery:

• The Encryption: Standard AES-128 in Electronic Codebook (ECB) mode with PKCS#7 padding. No initialization vectors, just clean 16-byte chunks.
• The Static Master Key: During that very first handshake, the lock creates a unique 16-character ASCII key (for example: AgABTwoGQslyXokl). The lock writes this permanently into its internal flash memory. It stays identical across every daily unlock unless you physically reset the lock to factory defaults.
• Dynamic Session Keys: Even though the Master Key is permanent, the lock does not let you reuse it for normal commands. On every single connection, the lock and phone negotiate a brand new, one-time 16-byte session key and a 4-byte session token. Every unlock command or battery check that follows has to use that ephemeral session key.

Step 3: The Four-Step Dance

You cannot just wake up the lock and shout "open!" at it. The lock firmware is strict about its security lifecycle. Every single connection has to perform a four-step dance:

1. Probe (0x00F0): Encrypted with your Master Key. Proves who you are and grabs a 4-byte session token.
2. Key Request (0x00F1): Send back the token using the Master Key. The lock generates that session unique ephemeral key.
3. Context Sync (0x00F2): Send your unique Lock Salt encrypted with the new session key. The lock acknowledges you are authorized to issue commands.
4. Execute (0x0001): Now you can trigger the motor. The deadbolt pulls back, and the door opens.

Once I replicated this handshake in a Python script, the lock unlocked. The front door was officially mine.

Step 4: Tracking Who Came Through the Door

While testing the vendor app, I noticed it could generate temporary single-use visitor passcodes. For that feature to work, the lock obviously needs a way to report which specific credential was used to open the door.

That made me dig deeper into the Bluetooth captures, and I found a goldmine:

• Live Push Alerts (Opcode 0x000A): Whenever someone touches the lock while connected, it immediately broadcasts an unsolicited notification packet containing the event, battery state, and credential details.
• Flash Audit History (Opcode 0x0009): The lock actually stores an offline history log in its internal flash memory chip. Each event is a neat 32-byte record.

Decoding these records revealed rich telemetry:

Unlock Method	Raw Bytes Sent by Lock	What Shows in Home Assistant
Fingerprint	Event: 0x04 Type: 0x01 Slot: 0x0011 / 0x0014	Unlocked by - Left Thumb Unlocked by - Right Thumb
NFC Card	Event: 0x04 Type: 0x04 Slot: 0x000D	Unlocked by - NFC Card 1
Keypad PIN	Event: 0x04 Type: 0x02 User: 0x03E9 ASCII: 31 32 33 34 35 36	Unlocked by - PIN: 123456
Atomberg App	Event: 0x04 Type: 0x00 Slot: 0	Unlocked by - Atomberg App
Denied Attempt	Event: 0x36 Type: 0x02 (Wrong PIN) ASCII: 31 31 31 31 31 31	Alert: Wrong Keypad PIN: 111111

Step 5: Making It Frictionless for Everyone Else

I had achieved local control on my own machine, but relying on Frida hooks on a rooted Android device is not something normal smart home users want to deal with. If I wanted to open-source a Home Assistant integration, the credential extraction had to be accessible to anyone.

The eureka moment came from remembering the lifecycle of that Static Master Key. Because it is generated fresh whenever the lock is paired, resetting the lock forces it to send that key over the air to the app, encrypted with the universal factory bootstrap key.

The solution was clean:

1. Turn on standard Bluetooth HCI Snooping in Android Developer Options (no root required).
2. Reset the lock and pair it normally in the mobile app once.
3. Pull the Bluetooth log file via ADB.

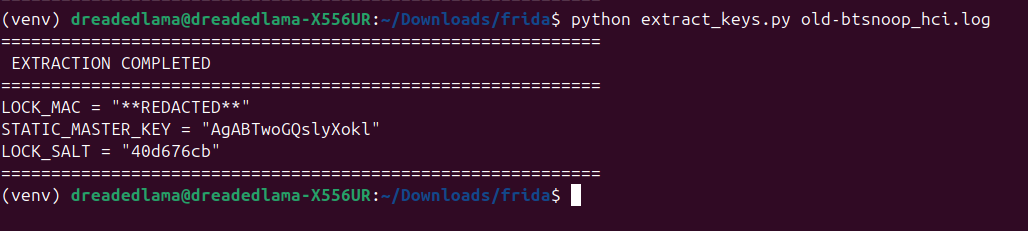

4. Run a small helper script that automatically hunts down the initial handshake, decrypts it with the factory key, and prints the exact three values needed for Home Assistant.

Those three values are all you need: your lock MAC Address, its permanent Static Master Key, and a 4-byte Lock Salt.

The Anatomy of an HSJ Packet

Every single message flying back and forth over the air is wrapped in a tidy binary envelope:

+---------------+----------------+----------------+--------------------------+---------------+
| Header (3B)   | Total Len (2B) | Outer Seq (2B) | Encrypted Payload (NB)   | Checksum (2B) |
+---------------+----------------+----------------+--------------------------+---------------+
| 0x48 0x53 0x4A| Big-Endian     | Big-Endian     | AES-128-ECB Ciphertext   | Modbus CRC-16 |
|    ("HSJ")    | uint16         | uint16         | (Multiple of 16 Bytes)   | Big-Endian    |
+---------------+----------------+----------------+--------------------------+---------------+

It starts with the magic ASCII characters HSJ, specifies the total length of the frame, tracks a rolling sequence number, holds the padded AES ciphertext, and caps it off with a standard Modbus CRC-16 checksum.

Whenever a packet is longer than 20 bytes, the sender simply slices it into 20-byte pieces with a brief 30ms breather between chunks so the Bluetooth radio buffer does not overflow.

Living Locally in Home Assistant

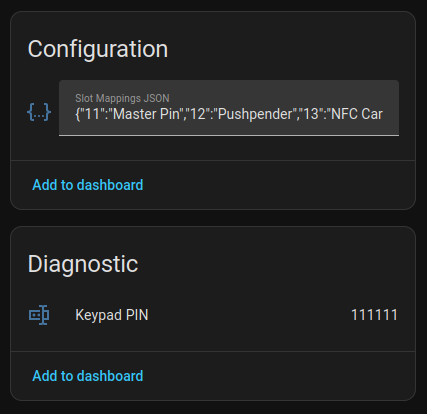

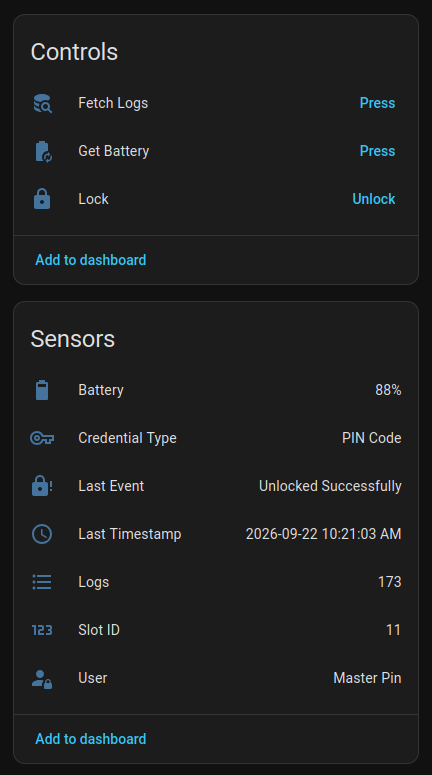

With the protocol completely mapped out, I built a custom Home Assistant integration (atomberg_lock) to manage the entire lifecycle. The hardware also enforces a strict single-connection limit.

The integration handles this with an efficient connection queue:

┌────────────────────────────────────────────────────────────┐
│                    HOME ASSISTANT CORE                     │
│                                                            │
│  Entities Exposed:                                         │
│  - lock.atomberg_sl1_pro_door (Unlock with 5s auto-relock) │
│  - sensor.atomberg_battery (Live percentage tracking)      │
│  - sensor.atomberg_last_event (Push alerts & timestamps)   │
│  - sensor.atomberg_user (Decoded name based on slot ID)    │
│  - sensor.atomberg_keypad_pin (Diagnostic entered PIN)     │
│  - text.atomberg_slot_mappings_json (Editable names)       │
│  - button.get_battery                                      │
│  - button.fetch_logs                                       │
└────────────────────────────────────────────────────────────┘

Whenever an unlock is requested, the coordinator connects, executes the 4-step handshake, triggers the deadbolt, starts a 5-second auto-relock timer to reflect the physical latch behavior, and drops the Bluetooth link cleanly.

The End Result

The lock now lives completely inside Home Assistant as a first-class citizen, operating over pure local Bluetooth Low Energy without needing the official app or an internet connection.

I get live battery readouts, and granular audit trail sensors that immediately parse which user opened the door.

What I Want to Look at Next

Final Thoughts

What started as annoyance over location permission nag screens turned into a complete reverse engineering adventure.

Now, my front door lock operates 100% locally. The deadbolt unlocks instantly from my dashboard, and every single entry log is archived privately on my own server without a single byte leaving the house.

Smart devices in your home should answer to you, not to a vendor cloud app. If you are willing to look at the packets, you can usually take back control.
